?Q30HE-900R定向耦合器
?Q30HE-900R定向耦合器
為重要性能指標

Q30HE-900R定向耦合器

頻率：0.7 – 1.2 GHz藕合：30.五分貝±兩分貝解耦白皙度：±0.3dB方問性：18音貝駐波比：1.10:1復制到耗費：0.1dB電率：355瓦鑒定板722-0006-05-E01備貨壽命：6-8周

品牌：Electro-Photonics

產品設備寶貝詳情簡介

700-1200 MHz Directional Coupler

The Q30HE-900R is a broadband, bi-directional coupler with high directivity and high power handling. It is suitable for LTE mobile broadband, UHF television, GSM, and more…

Specifications

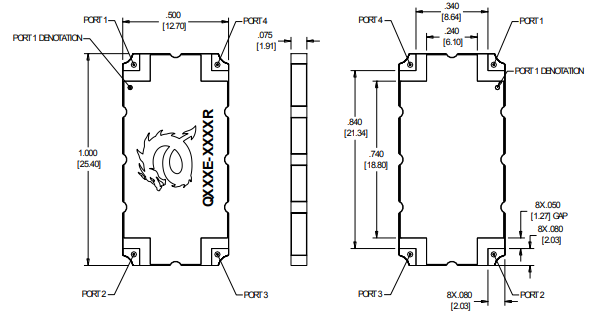

  • Size: 1.00 x 0.50 inches
  • Frequency: 0.7 – 1.2 GHz
  • Coupling: 30.5 dB ± 1 dB
  • Coupling Flatness: ± 0.3 dB
  • Directivity: 18 dB
  • VSWR: 1.10:1
  • Insertion Loss: 0.1 dB
  • Power: 355 W
  • Evaluation board 722-0006-05-E01
