?Q20HGA-1090R定向耦合器
?Q20HGA-1090R定向耦合器
根本參數值

Q20HGA-1090R定向(xiang)耦合器

頻段：960 – 1220 MHz耦合電路：20噪音分貝±0.75噪音分貝位置性：面值最小 20 dB駐波比：1.15:1放進去損失：0.15dB效率：200瓦評價板722-0006-03-E01訂購期限：6-8周

品牌：Electro-Photonics

企業產品具體詳情簡紹

960-1220 MHz Directional Coupler

The Q20HGA-1090R is a broadband, bi-directional coupler with high power handling. It is suitable for AWS, DCS, PCS, UMTS, CDMA , IMT and more…

Specifications

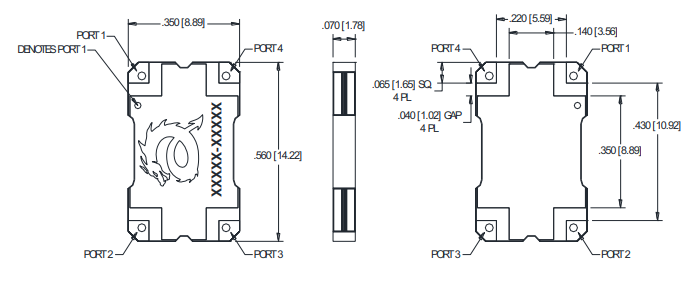

  • Size: .560 X .350 inches
  • Frequency: 960 – 1220 MHz
  • Coupling: 20 dB ± 0.75 dB
  • Directivity: 20 dB min
  • VSWR: 1.15:1
  • Insertion Loss: 0.15 dB
  • Power: 200 W
  • Evaluation board 722-0006-03-E01
