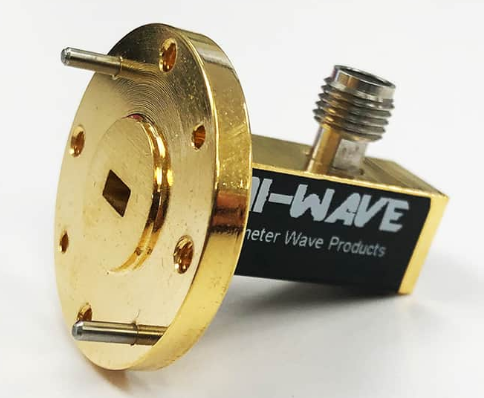

?Mi-Wave波導到同軸適用器
上線(xian)時間：2022-11-01 16:43:40 觀(guan)看(kan)：849
Mi-Wave的410系類波導到同軸支持器也能能夠的從矩形框波導選用同軸進行接插件。全波導服務器帶寬從8.2到110GHz。低加上耗用和駐波比是整個波導同軸適應器其最典型的的特點。低直接費用的制造板本就也可能讓機器和整車線束廠應用軟件。實驗設計室職務級別也也可能為一些參數。Mi-Wave的同軸到波導兼容器能夠滿足通訊網絡裝備的具體需求，是當前市售上適用性的建議的波導互轉兼容器最為。
有特點
展示低價(jia)格型號
幀率依據(ju) 8.2 至 110 GHz
具備幾種同軸連(lian)接方式器
進(jin)行工(gong)業動(dong)用的高(gao)能版(ban)。
Mi-Wave是商用(yong)(yong)型型和軍民融(rong)合用(yong)(yong)亳(bo)米(mi)波(bo)(bo)類(lei)(lei)物品(pin)國際引航(hang)者，需要提高亳(bo)米(mi)波(bo)(bo)電子(zi)器(qi)件和方(fang)法(fa)搞定(ding)方(fang)法(fa)。類(lei)(lei)物品(pin)線適用(yong)(yong)于(yu)：縮放器(qi)、混頻器(qi)、衰(shuai)減(jian)器(qi)、濾波(bo)(bo)器(qi)、電開關(guan)、T/R、定(ding)向(xiang)天(tian)線、反射面鏡等，所富含幀率高達mg320GHz.
南京(jing)市立維(wei)創展技術限制集團授權書微(wei)商代(dai)理(li)售銷(xiao)Mi-Wave公厘(li)波貨(huo)品，喜歡(huan)諮詢。
商品詳情頁介紹Mi-Wave請點選：//dev.www.zhixianguangzhou.com.cn/brand/52.html
Model | Band | Frequency (GHz) | Insertion Loss (dB) | Return Loss (dB) | Power Handling (W) | Waveguide Port | Coaxial Port |
410X/39/NF | X-Band | 8.2-12.4 | 0.4 | 16 | 400 | WR-90 Waveguide, UG-39/U Flange | NF- Female connector |
410X/39/SMAF | X-Band | 8.2-12.4 | 0.4 | 17 | 150 | WR-90 Waveguide, UG-39/U Flange | SMA- Female connector |
410X/39/SMAM | X-Band | 8.2-12.4 | 0.4 | 16 | 150 | WR-90 Waveguide, UG-39/U Flange | SMA-Male connector |
410(51)/UBR180/CKF | WR-51 | 15-12 | 0.3 | 20 | 10 | WR-51 Waveguide, UBR180 Flange w "O" Ring | CK-Female connector |
410(34)/596/KF | WR-34 | 22-33 | 0.4 | 20 | 10 | WR-34 Waveguide, UG-596 Flange w "O" Ring | K-Female connector |
410(34)/595/KF | WR-34 | 22-33 | 0.4 | 17 | 10 | WR-34 Waveguide, UG-596 Flange w "O" Ring | K-Female connector |
410(34)/595/3.5mmF | WR-35 | 22-33 | 0.4 | 20 | 10 | WR-34 Waveguide, UG-596 Flange w ";O" Ring | 3.5 mm Female Connector |
410(75)/SMAF | WR-75 | 10-15 | 0.3 | 20 | 150 | WR-75 Waveguide | SMA Female |
410Ku/419/SMAF | Ku-Band | 12.4-18 | 0.3 | 20 | 150 | WR-62 Waveguide, UG-419 Flange | SMA Female |
410K/595/SMAF | K-Band | 18-26.5 | 0.4 | 20 | 150 | WR-42 Waveguide with UG-595/U Flange | SMA-Female |
410K/595/KF | K-Band | 18-26.5 | 0.4 | 20 | 10 | WR-42 Waveguide, UG-595/U Flange | K-Female connector |
410A/599/KF | Ka-Band | 26.5-40 | 0.4 | 20 | 10 | WR-28 Waveguide, UG-599/U Flange | K-Female connector |
410A/599/KM | Ka-Band | 26.5-40 | 0.4 | 20 | 10 | WR-28 Waveguide, UG-599/U Flange | K-Male connector |
410B/383/KF | Q-Band | 33-40 | 0.5 | 20 | 10 | WR-22 Waveguide with UG-383/U Flange | K-Female connector |
410B/383/KM | Q-Band | 33-40 | 0.4 | 20 | 10 | WR-22 Waveguide with UG-383/U Flange | 2.92mm (K) Male connector |
410B/383/2.4mmF | Q-Band | 33-50 | 0.4 | 20 | 10 | WR-22 Waveguide, UG-383/U Flange | 2.4 mm Female Connector |
410B/383/2.4mmM | Q-Band | 33-50 | 0.4 | 20 | 10 | WR-22 Waveguide, UG-383/U Flange | 2.4 mm Male Connector |
410U/383/1.85mmF | U-Band | 40-60 | 0.5 | 17 | 10 | WR-19 Waveguide with UG-383/U-M Flange | 1.85 mm Female connector |
410U/383/1.85mmM | U-Band | 40-60 | 0.5 | 17 | 10 | WR-19 Waveguide with UG-383/U-M Flange | 1.85 mm Male Connector |
410V/385/1.85mmF | V-Band | 50-67 | 0.5 | 17 | 10 | WR-15 Waveguide With UG-385/U Flange | 1.85 mm Female connector |
410V/385/1.85mmM | V-Band | 50-67 | 0.5 | 17 | 10 | WR-15 Waveguide with UG-385/U Flange | 1.85 mm Male connector |
410V/385/1.85mmF | V-Band | 50-67 | 0.5 | 17 | 10 | WR-15 Waveguide with UG-385/U Flange | 1.85 mm Female connector |
410V/385/1.00mmF | V-Band | 50-67 | 0.5 | 15 | 10 | WR-15 Waveguide with UG-385/U Flange | 1.00 mm Female connector |
410E/387/1.00mmM | E-Band | 60-90 | 1 | 15 | 10 | WR-12 Waveguide, UG-387/U Flange | 1.85 mm Male connector |
410E/387/1.00mmF | E-Band | 60-90 | 1 | 15 | 10 | WR-12 Waveguide, UG-387/U Flange | 1.00 mm Female connector |
410W/387/1.00mmM | W-Band | 75-110 | 1.2 | 15 | 10 | WR-10 Waveguide, UG-387/U-M Flange | 1.00 mm Male connector |
410W/387/1.00mmF | W-Band | 75-110 | 1.2 | 15 | 10 | WR-10 Waveguide, UG-387/U-M Flange | 1.00 mm Female connector |
