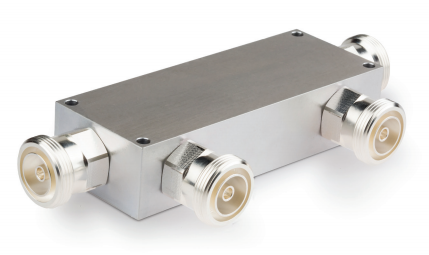

?MegaPhase頻射定向分配交叉耦合器
更(geng)新(xin)周期：2023-03-28 16:45:00 看：1429
MegaPhaserf微波射頻定向就業生交叉解耦器械備供需雙因素交叉解耦控制電路值和頻段尺寸以夠滿足需要非常多技術APP和系統性的需求。rf微波射頻定向就業生交叉解耦器構思看做最合理的試驗生活環境，要夠滿足需要軍工企業用L股票波段和環境空間系統的標準的管理。MegaPhase微波射頻定向培養藕合器才能在有很多芯片封裝和接連器系類中完成任務藕合電路原理值、優化性和加入材料耗費的嚴酷公差。
窄帶橫向合體器：
倍(bei)頻程(cheng)和(he)多(duo)倍(bei)頻程(cheng)概率段至12GHz
6、10、20和30dB交叉耦合電路原(yuan)理(li)
符合N型、SMA型和2.92mm相連(lian)器
大功(gong)效、低插入圖消耗
設計構思(si)達到MIL-DTL-15370
適于的氛圍選擇
窄帶專向合體器：
移動寬(kuan)帶至26.5GHz
10、16、20dB藕合控(kong)制電(dian)路
25W工(gong)作(zuo)功(gong)率改善
SMA和2.92mm接連器(qi)不適用
結構設計提供MIL-DTL-15370環保的標準(zhun)
可做出抉擇
光纖寬帶定向就業藕合器：
多倍頻(pin)程帶至18GHz
T6、10、20和30dB合體電路設計
50W電率解(jie)決方法
具備著(zhu)N型(xing)、SMA型(xing)和(he)2.92mm進行電源連接器
制定能夠滿足(zu)MIL-DTL-15370
適用于的環保篩分
MegaPhase毫米(mi)（mm）波(bo)元(yuan)電子器(qi)件建(jian)立于(yu)1998年，是國外最牛的徽波(bo)低壓電纜(lan)供貨商。MegaPhase裝修公司設(she)置和生產方式(shi)高靠譜性頻射同基準面纜(lan)、對接器(qi)企業(ye)產品，MegaPhase公分波(bo)電纜(lan)線(xian)設(she)備大(da)范(fan)圍適用業(ye)務(wu)于(yu)紅外光(guang)于(yu)紅外光(guang)于(yu)光(guang)學設(she)計，針對是公測、防務(wu)電子、小行星通信(xin)系(xi)統系(xi)統、網絡帶(dai)寬數據(ju)源通信(xin)系(xi)統系(xi)統等。MegaPhase食(shi)品線(xian)頻率能(neng)達到DC-110GHz.
鄭州市(shi)立維創展技術授權證書出(chu)售商出(chu)售MegaPhase商品(pin)，主要可(ke)以提供MegaPhase企(qi)業產品(pin)的穩相線(xian)纜和線(xian)纜構件，并出(chu)具(ju)售后維修鼓勵貼心服務，受歡迎網絡咨詢。
情況要了解MegaPhase微波電纜請點擊：//dev.www.zhixianguangzhou.com.cn/brand/40.html
Narrow Band Dual Direction Couplers
MegaPhase Model No. | Type | Frequency Range (GHz) | Connectors | Coupling (dB, Nom.) | Frequency Sensitivity (dB, Max.) | Directivity (dB, Min.) | Insertion Loss (dB, Max) | Main Line VSWR | Coupled Line VSWR | Size |
DDC-40N-.17G | Dual 40 dB | .1 to .25 | N-F | 40 | 1 | 20 | 0.55 | 1.25 | 1.35 | 5.00 x 2.00 x 1.25 750 745 740 |
DDC-40NS-.17G | Dual 40 dB | N/SMA-F |
DDC-40NB-.17G | Dual 40 dB | N/BNC-F |
Wide Band Directional Couplers
MegaPhase Model No. | Type | Frequency Range (GHz) | Connectors | Coupling (dB, Nom.) | Frequency Sensitivity (dB, Max.) | Directivity (dB, Min.) | Insertion Loss (dB, Max) | Main Line VSWR | Coupled Line VSWR | Size |
DC27-10S-4G | 10 dB | 0.3 – 8.0 | SMA -F | 10, 20 | 1.2 | 15 | 1 | 1.5 | 1.5 | 6.00 x .73 x .50 |
DC27-20S-4G | 20 dB |
DC36-10S-9.2G | 10 dB | 0.5 – 18.5 | SMA -F | 10, 20 | 1.2 | 12 | 1.6 | 1.8 | 1.8 | 4.40 x .73 x .50 |
DC36-20S-9.2G | 20 dB |
DC9-10S -10G | 10 dB | 2.0-18.0 | SMA -F | 6, 10, 15 20, 30 dB | 1.2 | 12 10 (30 dB) | 1 | 1.8 | 1.8 | 2.25 x .73 x .50 |
DC9-15S-10G | 15 dB |
DC9-20S-10G | 20 dB |
DC9-30S-10G | 30 dB |
Narrow Band Directional Couplers
MegaPhase Model No. | Type | Frequency Range (GHz) | Connectors | Coupling (dB, Nom.) | Frequency Sensitivity (dB, Max.) | Directivity (dB, Min.) | Insertion Loss (dB, Max) | Main Line VSWR | Coupled Line VSWR | Size |
|
DC3-3N-.32 | 3 dB | .13-.520 | NF (C-5352-dB will be dual directional) | 3 to 40* (40 dB is 30 w/ internal pad) | 1 to 2 | 18 (3-7 dB) 20 (10+ dB) | 0.3 dB above theoretical coupling loss | 1.3 | 1.3 | 5.80 x 2.00 x 1.00 |
|
DC3-4N-.32 | 4 dB |
|
DC3-5N-.32 | 5 dB |
|
DC3-6N-.32 | 6 dB |
|
DC3-7N-.32 | 7 dB |
|
DC3-10N-.32 | 10 dB |
|
DC3-15N-.32 | 15 dB |
|
DC3-20N-.32 | 20 dB |
|
DC3-30N-.32 | 30 dB |
|
DC7-5N-1.5G | 5 dB | .38-2.7 | N-F | 5 to 30 dB | 1 | 20 | 0.7 | 1.35 | 1.35 | 6.46 x 1.21 x .72 343 312 283 |
|
DC7-6N-1.5G | 6 dB |
|
DC7-7N-1.5G | 7 dB |
|
DC7-10N-1.5G | 10 dB |
|
DC7-15N-1.5G | 15 dB |
|
DC7-20N-1.5G | 20 dB |
|
DC7-30N-1.5G | 30 dB |
|
DC2-XS-.75G* | 6, 10, 15, 20, 30 dB | 0.5 – 1.0 | SMA -F | 6, 10, 15, 20, 30 Db * | 1 | 20 dB (up to 4GHz) | 0.6 | 1.3 (up to 4GHz) | 1.3 (up to 4GHz) | 4.40 x .73 x .50 |
DC4-XS-1.25G* | 0.5 – 2.0 | 4.40 x .73 x .50 |
DC4-XS-1.7G* | 0.7 – 2.7 | 4.40 x .73 x .50 |
DC2-XS-1.5G* | 1.0 – 2.0 | 15 dB (up to 12GHz) | 1.5 (up to 12GHz) | 1.5 (up to 12GHz) | 3.50 x .73 x .50 |
DC4-XS-2.5G* | 1.0 – 4.0 | 3.50 x .73 x .50 |
DC2-XS-3G* | 2.0 – 4.0 | 2.25 x .73 x .50 |
DC2-XS-3.9G* | 2.6 – 5.2 | 12 dB (up to 18GHz) | 1.7 (up to 18GHz) | 1.7 (up to 18GHz) | 2.25 x .73 x .50 |
DC2-XS-6G* | 4.0 – 8.0 | 1.10 x .65 x .50 |
DC2-XS-9.5G* | 7.0 – 12.4 | 1.10 x .65 x .50 |
DC2-XS-15G* | 12.0– 18.0 | 1.10 x .65 x .50 |
